Product Overview
Antibody sequencing currently employs a bottom-up proteomics strategy, using various protease digestion combinations to hydrolyze antibodies/proteins into peptides. Then, high-sensitivity and high-resolution mass spectrometry is used to acquire MS/MS secondary mass spectra of these peptides. De novo analysis of the amino acid sequences of these peptide MS/MS spectra is performed using software, and then the sequences are further stacked and assembled into the full-length protein sequence.
Service Features
(1) High accuracy, guaranteeing sequencing activity; the success rate of sequencing hundreds of antibodies annually reaches 98%;
(2) Low requirement for sample purity; purity above 50% is sufficient, and sequencing of mixed monoclonal antibodies is also possible;
(3) High sensitivity; sample volume is generally 20-100ug, and Wininnovate Bio can sequence proteins or antibodies down to 1-5ug, allowing for protein separation and sequencing from kits;
(4) Fast: generally 5-10 working days, with delivery as fast as 2 working days;
(5) Relatively low price;
(6) Does not distinguish between antibody types such as IgG and IgM, or mouse, rabbit, chicken, nanobodies, or modified antibody species;
(7) Charges are based on the total number of antibody sequences delivered, with thorough pre-sales communication and respect for customer needs and opinions;
(8) Worry-free after-sales service; up to two free retesting services or refunds are provided to ensure customers receive completely accurate sequence information.
Technical Process

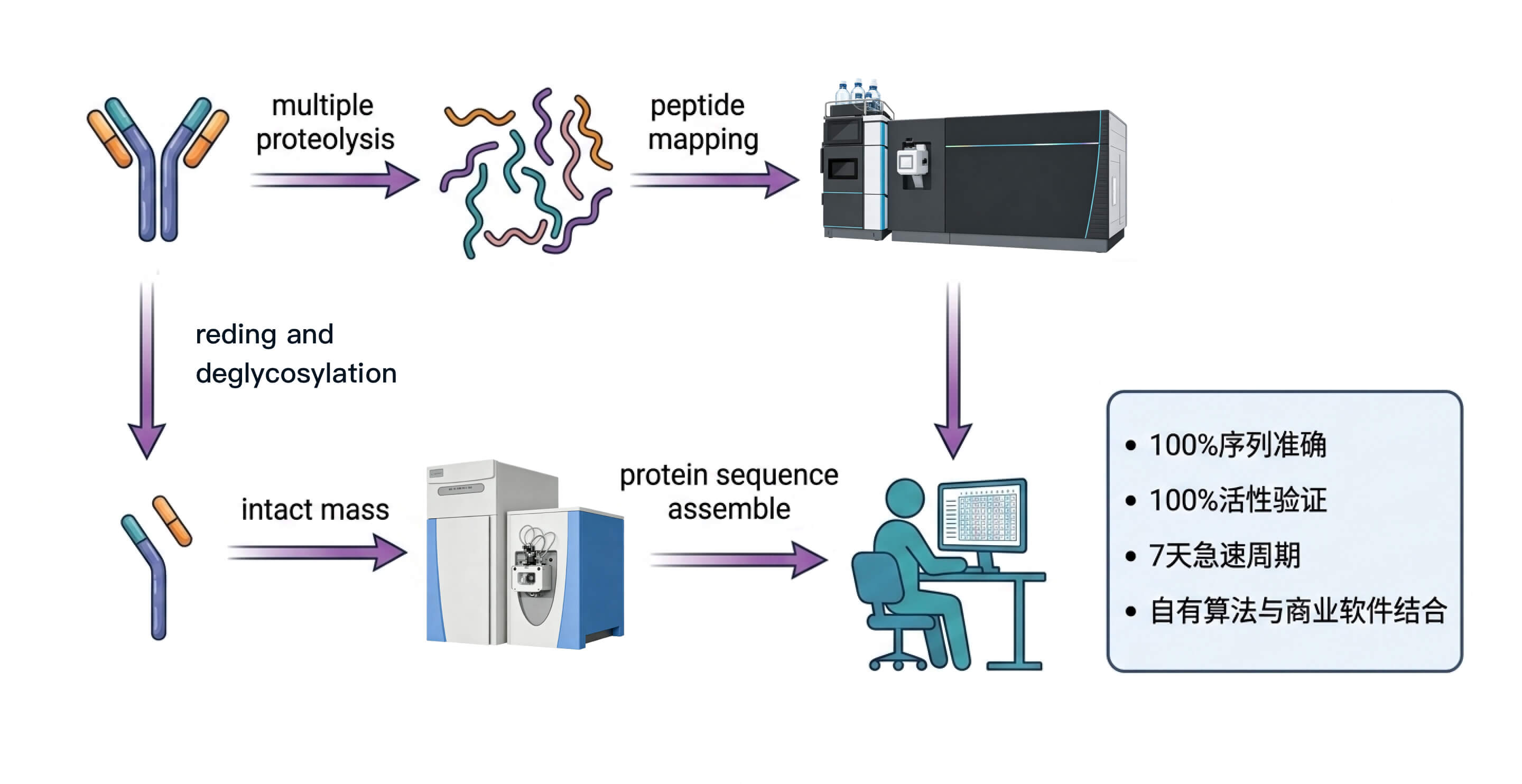

Figure 1. Antibody sequencing flowchart
Key Deliverables
> A001 ligth chain
QIVLTQSPAIMSASPGEKVTMTCSASSSVSFMHWYQQKSGTSPKRWIYATSKLASGVPARFSGSGSGTSYSLTISSMEAEDAATYYCQQWSSNTPTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC.
>A001 heavy chain
EVQLQQSGPELVKPGTSMKISCKASGYSFTDYTMNWVKQSHGKNLEWIGLINPYNGGTSYNQKFKGKATLTVDKSSTTAYMELLSLTSEDSAVYYCARRGDRYDNYYAMDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRDCGCKPCICTVPEVSSVFIFPPKPKDVLTITLTPKVTCVVVDISKDDPEVQFSWFVDDVEVHTAQTQPREEQFNSTFRSVSELPIMHQDWLNGKEFKCRVNSAAFPAPIEKTISKTKGRPKAPQVYTIPPPKEQMAKDKVSLTCMITNFFPEDITVEWQWNGQPAENYKNTQPIMDTDGSYFVYSKLNVQKSNWEAGNTFTCSVLHEGLHNHHTEKSLSHSPGK.

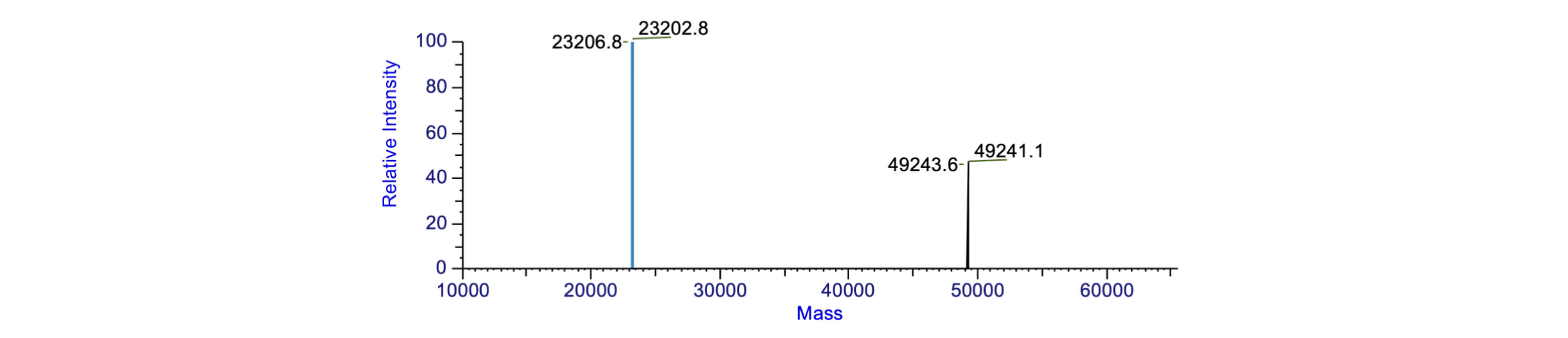

Figure 2. Molecular mass of intact N-glycan light and heavy chains cleaved by antibody
Figure 3. Amino acid sequence coverage diagram

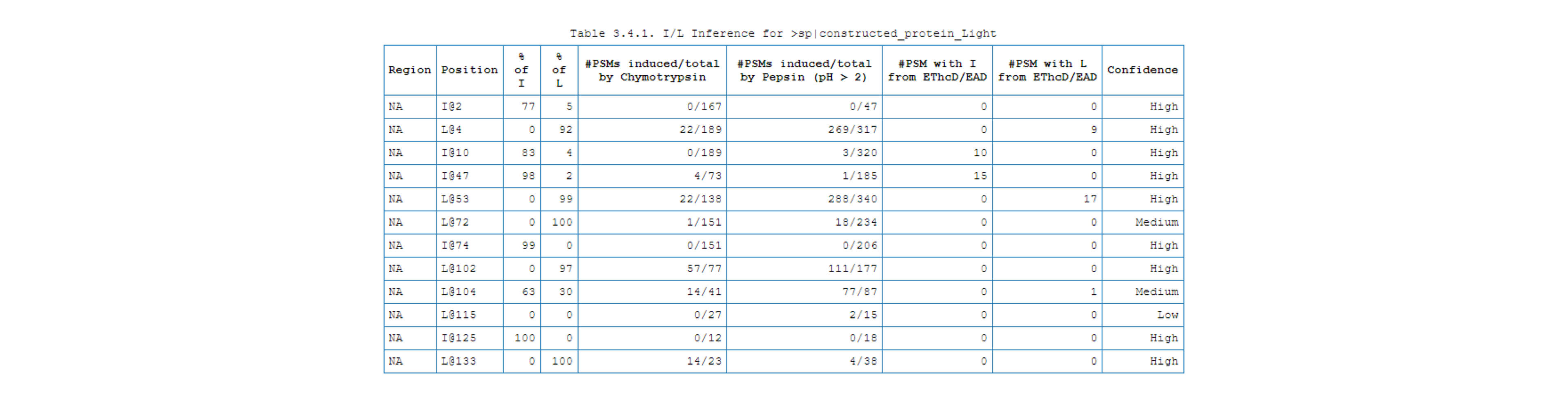

Figure 4. Amino acid distinction table between leucine and isoleucine
